Nanjing Carbon Recycle Biomass Energy Co.， Ltd. can produce coal mine gas pretreatment system with capacity up to 30000 Nm3/h. We can provide containerized or skid-mounted equipment according to customer’s requirement.

Main Features

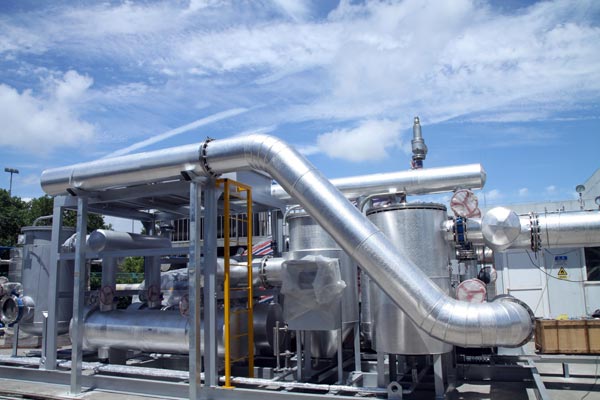

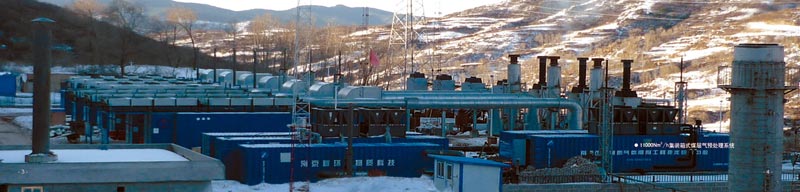

• Containerized or skid-mounted assembling;
• Fully automatic operation with data logger , display, remote communication & detection;
• On-line monitoring, alarm and shutdown to ensure safety, reliability, and long-term operation;
• PID control for automatic pressure amplification, over-pressure protection, and stabilization of gas pressure, temperature and flow rate;
• Centrifugal dehydration to reduce gas relative humidity;

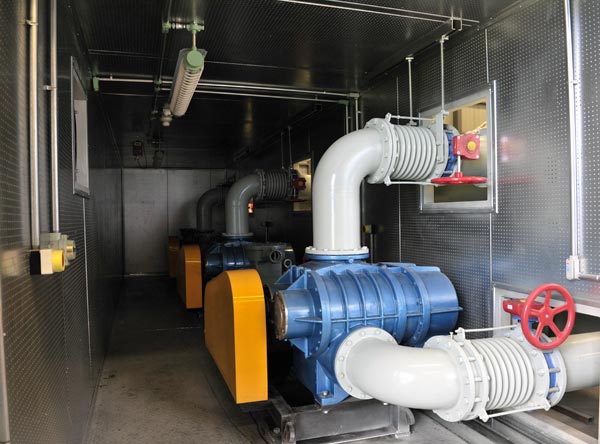

• Centrifugal blowers which are safe, noiseless and maintenance free;
• Multiple filters to ensure dust particle’s diameter less than 3 μm;
• Variable frequency control to ensure safety and energy-saving.

Specification

• Gas treatment Capacity ：2000－30000Nm³/h
• InLet Gas Temperature：10～40℃
• Inlet Pressure：>0kPa
• Inlet Gas Relative Humidity：100%RH
• Inlet Gas Particle Diameter：30μm
• Outlet Gas Temperature：≤50℃
• Outlet Gas Pressure：38kPa
• OutLet Gas Relative Humidity：≤80%RH
• Outlet Gas Particle Diameter：≤3μm
